• Multi-stage pumps

    RHINO

    VERTICAL MULTI-STAGE CENTRIFUGAL PUMPS

    The RHINO Pump is a multi-functional pump that can transport liquids of different types from the water source to the factory. It is suitable for a wide range of temperatures, flow rates, and pressure ranges.

    • • Filtration and Conveyance of Tap Water,Zoned Water Supply, Main Pipeline Boosting, Boosting for High-rise Buildings.

    • • Cleaning Systems, High-pressure Rinsing Systems, Fire Fighting System Boosting.

    • • Cooling and Air Conditioning Systems, Boiler Feedwater and Condensate Systems, Machine Tool Coolants.

    • • Reverse Osmosis Systems,Distillation Systems, Swimming Pools.

    • • Water for Field Irrigation, Water for Sprinkler Irrigation, Water for Drip Irrigation.

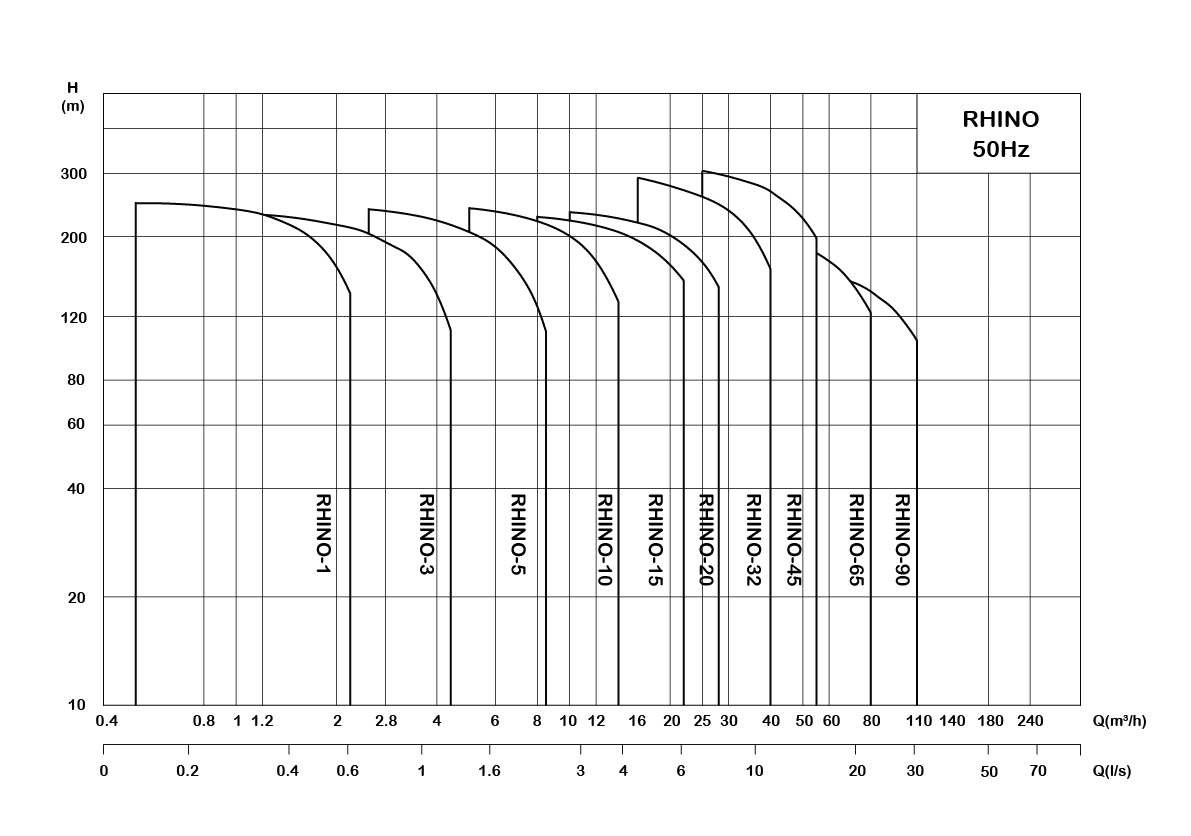

    Performance Curve-50Hz.png

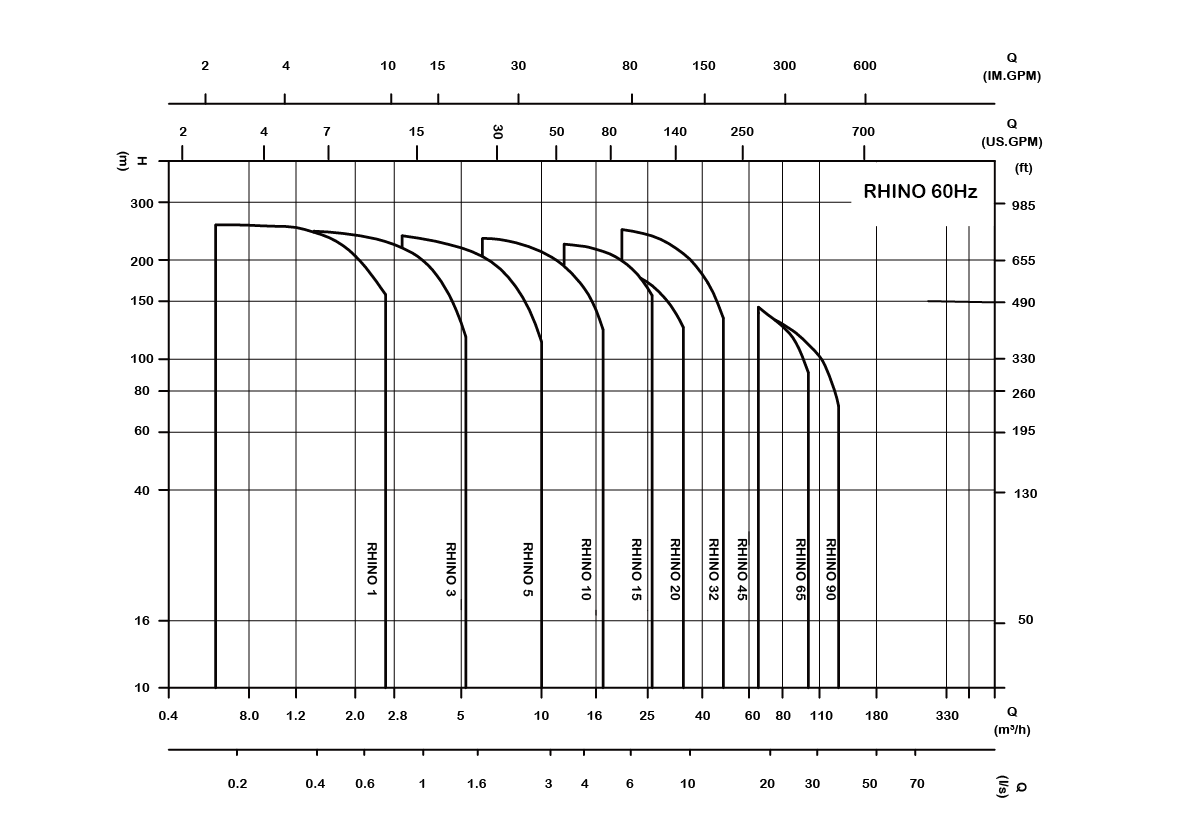

    Performance Curve-60Hz.png
